TECHNICAL SPECIFICATIONS |
|

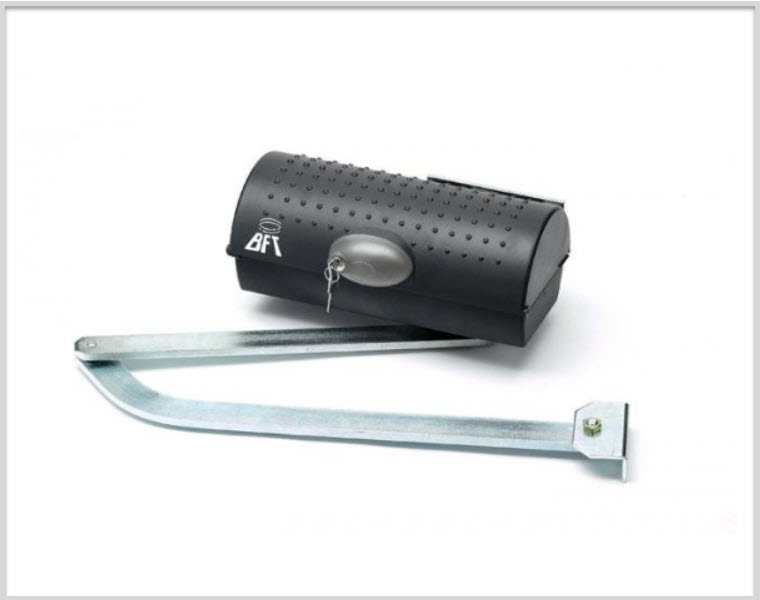

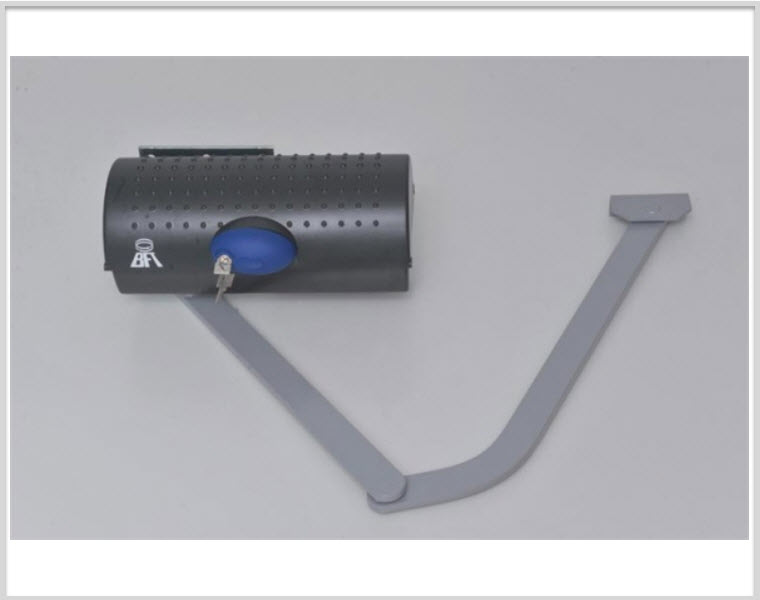

| Model
|
IGEA
|
| Type
|
Electromechanical
|
| Control Panel
|
ALTAIR P
|
| Operator
|
Irreversible
|
| Power Supply
|
230V~+-10%, 50Hz single phase
|
| Leaf Weight
|
up to 2500N (~250kg)
|
| Leaf Length
|
up to 2.5m
|
| Absorbed Power
|
300W
|
| Thermal Protection
|
Intergrated
|
| Leafe Rotaton Speed
|
5,3o/s
|
| Opening / Closing Speed
|
15s
|
| Impact Reaction
|
Torque limiter integrated in the control panel
|
| Type of Lock
|
Mechanical closing/opening
|
| Manual Release
|
Release knob with personalized key
|
| Operating Cycle
|
Semi intensive use
|
| Environmental Conditions
|
From -15C to +50C
|
| Degree of Protection
|
IP44
|
| Operator Weight
|
160N(~16kg)
|
