| Operator dimensions
|
150 mm x 123 mm (height x depth)
|
| Power supply
|
100-240 VAC ±10% 50/60 Hz
|
| Power consumption
|
max. 250 W
|
| Recommended maximum door weight
ASSA ABLOY SL500-2 without break-out 200 kg/ door leaf ASSA ABLOY SL500-2 with break-out 100 kg/ door leaf ASSA ABLOY SL500-1 without break-out 240 kg ASSA ABLOY SL500-1 with break-out 100 kg |
|
| Clear opening width (COW)
ASSA ABLOY SL500-2 1000 – 3000 mm (bi-parting) ASSA ABLOY SL500-1 800 – 3000 mm (single slide) Contact local sales representative for other dimensions |
|
| Open and closing speed variable
|
up to 1.7 m/s (2 leaves)
|
| Hold-open time
|
0 – 60 s
|
| Ambient temperature
|
-20°C to +50°C
|
| Relative humidity (non-condensing)
|
max. 85%
|
|
Standard equipment |
|
| Cover: clear anodized aluminium
|
|
| Support beam with transmission
|
|
| Electronic control unit with plug-in connections and power supply
|
|
|
Accessories and options |
|
| Cover: Other anodizing options or painted in RAL colours
|
|
| Door adaptor for doors up to 65 mm thick from other suppliers
|
|
| Traffic-controlled opening width
|
|
| Synchronizing of two operators
|
|
| Operation mode selectors
|
|
| Electronic emergency opening or closing unit
|
|
| Break-out doors
|
|
| Emergency button
|
|
| ASSA ABLOY motion and presence sensors
|
|
| Key switch
|
|

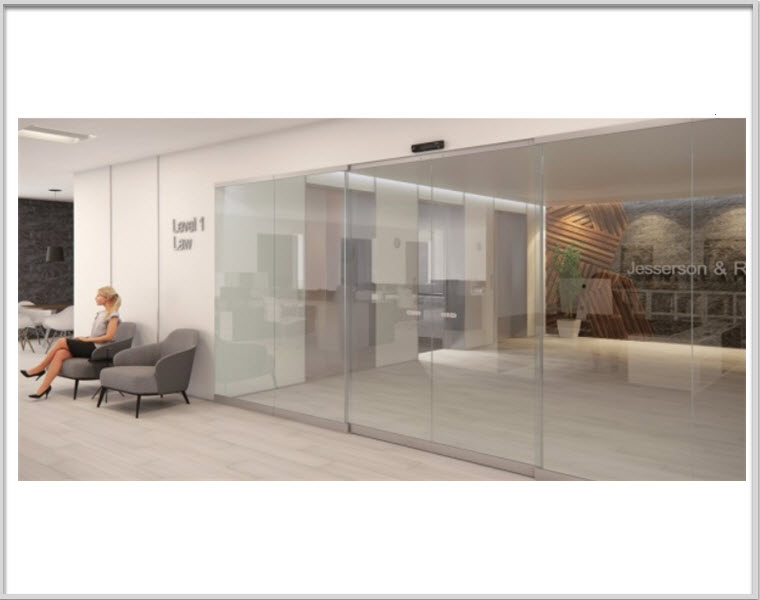

| ASSA ABLOY automatic door systems
|
|
| Escape route according to CO48 (France). In event of a power failure, the door can be opened with the built-in elastic cord.
|
|
