RD 100

Technical Specifications

Power supply
100-240 VAC+10/-15%,
 50/60 Hz,
 mains fuse max. 10 A (building installation)
Power consumption
max. 300 W

Standard equipment

- Semi-automatic drive
- Control unit built-in behind the fascia above the inside entrance
- Microprocessor controlled with plug-in modules, LED status lights and graphic service interface
- Outer wall and door sections made from aluminium profiles
- Glass Outer wall: 4 + 4 mm clear laminated (Frame/Slim)
- Glass door leaves: 3 + 3 mm Clear laminated (Frame)
- Other types of glass available
- Ceiling made from white laminated panels
- Dust protection roof made from white laminated panels
- Emergency stop
- Independent certification to EN16005:2012

Accessories and Options

- Powder-coated finish (RAL colours)
- Anodizing, clear or bronze
- Stainless steel cladding

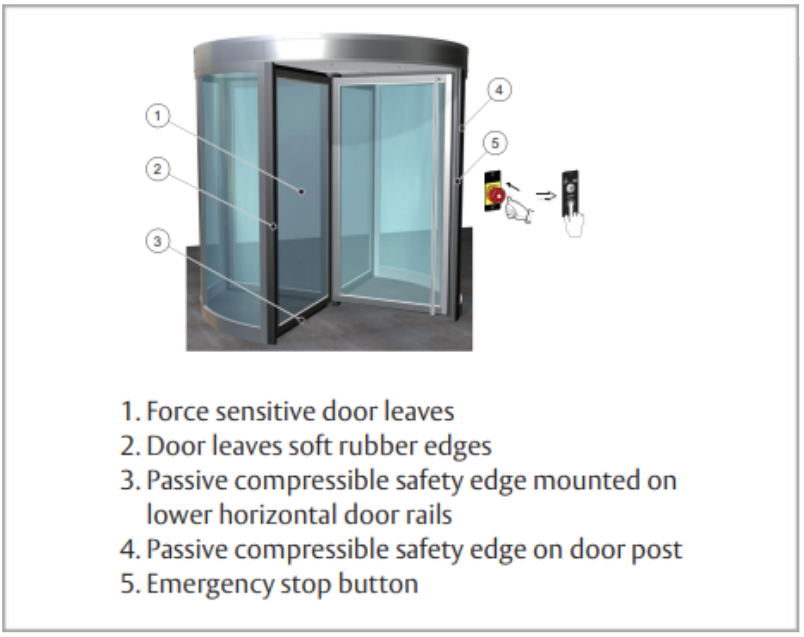

- Passive safety edges
- Night closing doors (NCD), manual
- RC3 burglar resistance according to EN1627:2011
- Mechanical lock on door leaf
- Fascia, non-standard height:         200 - 1250 mm
- Internal height non-standard:     2000 - 3000 mm
- Sheet metal sandwich panel instead of glass (Frame only)
- Ground ring for unfinished floor
- Various finishes to ceiling and dust cover
- Water-resistant cover
- Midrails on door leaves and/or outer walls
- Lighting LED with control
- Insulation to the canopy and roof
- Push bar
- Intelligent Air curtain integrated in the canopy or external side mounted
