TECHNICAL SPECIFICATIONS |
|
| Model
|

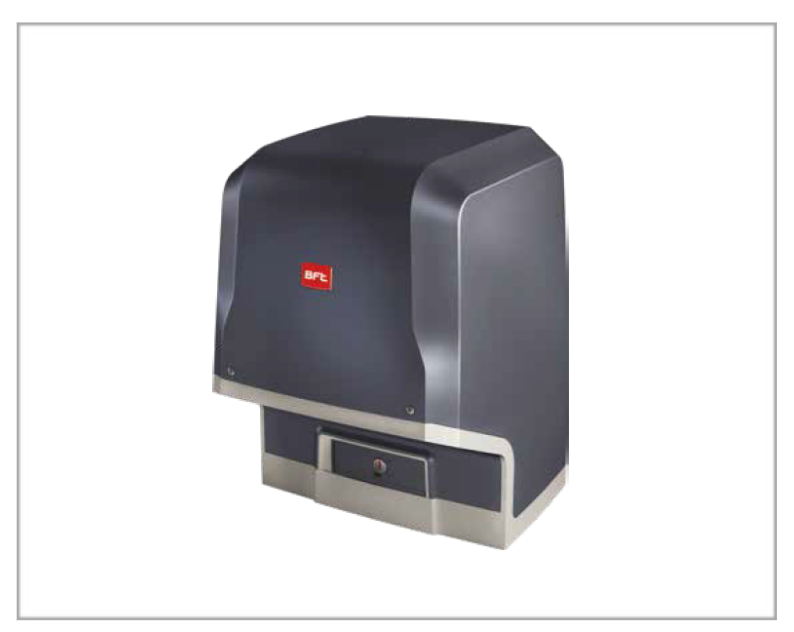

ICARO VELOCE SMART AC A1000
|
| Control unit
|
LEO B CBB SV
|
| Board power supply
|
230 V
|
| Motor voltage
|
230 V
|
| Power consumption
|
750 W
|
| Pinion module
|
4 mm (25 teeth)
|
| Gate panel speed
|
25 m/min
|
| Max. door/ gate weight
|
1000 kg
|
| Max torque
|
40 Nm
|
| Slowdown
|
Yes
|
| Impact reaction
|
8K2 safety edge (not supplied)
|
| Locking
|
Mechanical
|
| Manual cycle
|
Mechanical release with lever
|
| Frequency of use
|
Very intensive
|
| Protection rating
|
IP24
|
| Environmental
conditions |
-15 ÷ 55 °C
|
