TECHNICAL SPECIFICATIONS |
|

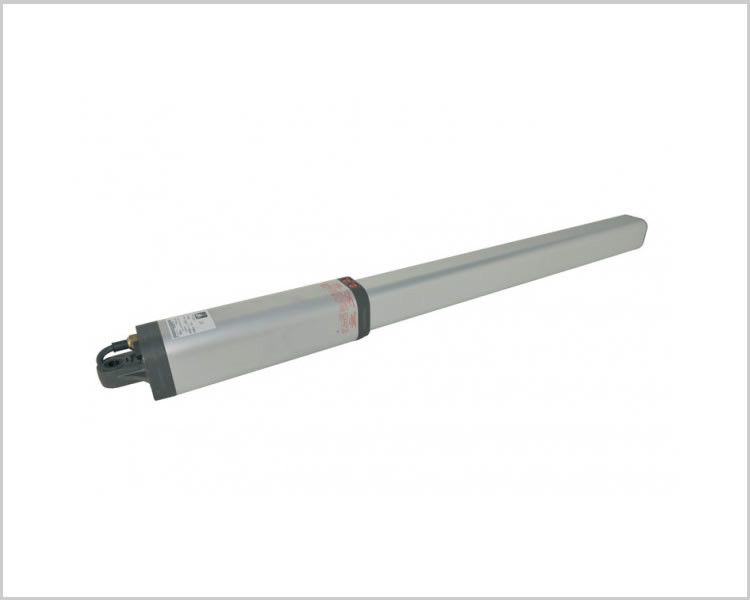

| TYPE
|
LUX B / LUX GV 2B
|
| CONTROL PANEL
|
ALCOR N (sugested)
|
| REVERSIBLE / IRREVERSIBLE OPERATOR
|
irreversible
|
| POWER SUPPLY
|
230V~10%, 50 Hz single-phase
|
| LEAF LENGTH
|
up to 2 m / 4,5 m
|
| LEAF WEIGHT
|
up to 300 kg / 320kg
|
| ABSORBED POWER
|
250W
|
| THERMAL PROTECTION
|
integrated
|
| ROD WORKING STROKE
|
270 mm / 390 mm
|
| ROD SPEED
|
14 mm/s
|
| OPENING AND CLOSING TIME
|
17 s / 27 s
|
| IMPACT REACTION
|
hydraulic clutch
|
| TYPE OF LOCK
|
hydraulic closing / opening and closing
|
| MANUAL RELEASE
|
release key
|
| OPERATING CYCLE
|
very intensive use
|
| ENVIRONMENTAL CONDITIONS
|
from -10OC to + 60OC
|
| DEGREE OF PROTECTION
|
IP57
|
| OPERATOR WEIGHT
|
87 N (~ 8,7 kg)
|
